FIVE-PTY8015 Small planar collector 1.5 m² copper tube solar collector 8 cm thick, black frame, with 9 year warranty! Where no one else fits!

• Details
• Info
• Opinions

Details

Solar collector

Size WxD: 1000 x 1500
Collector thickness 80 mm< br />Total collector surface: 1.50 m2
Aperture surface: 1.41 m2
Glass thickness: 3.6 mm
Glass thickness: microprism low-metal, heat-treated safety glass
Pipe: copper with harp system, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pcs 22 mm copper connecting pipe
Liquid capacity: 1.5 liters
Maximum pressure : 8 bar
Maximum operating pressure: 6 bar
Weight : 21 kg
Absorber material: selective black chrome
Absorbing capacity: 95 %
Emissivity factor: 11 %
Insulation material: glass wool
Insulation thickness: 30 mm
Idle temperature: 189 °C
Optical efficiency, η0: 0.66
Loss coefficient a1 (w/m³k2): 3.8
Loss coefficient a2 (w/m³k2): 0.023
Recommended volume flow: 35-78 liters/hour
Peak power per square meter 1141 Wp/solar collector 761 Wp/m2

PACKING SIZE:
155x1115X12 cm 23 kg

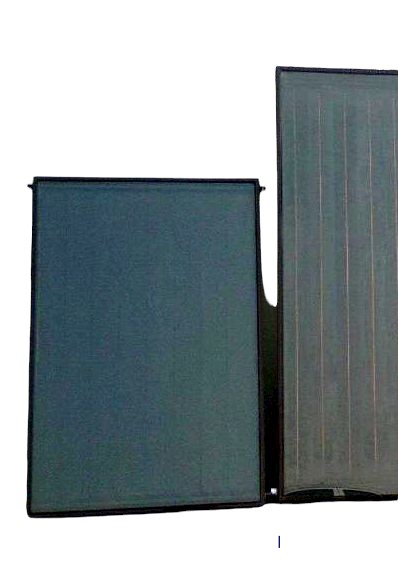

The picture is an illustration!

More information:



Small flat collector with 9 year warranty!

Don't forget to choose a frame!

Where you don't need or can't fit a bigger one...
Copper collector pipe, heat treated safety microprism glass, aluminum housing
Harp system copper manifold design, 22 mm connectors.
The flat collector support frame accessory is not included in the price!
