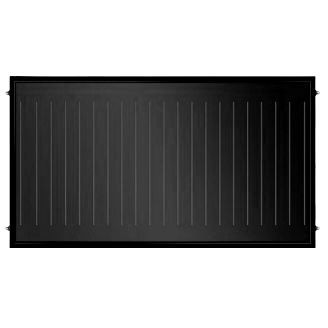

Flat plate collector SID-H can be installed horizontally, flat plate collector solar collector copper tube selective coating 2 m2

Plane collector for horizontal installation

Solar collector size WxD: 2060x1000 mm
Collector thickness 80 mm< br />Total solar collector surface: 2.00 m2
Aperture surface: 1.90 m2
Solar Keymark test result: ŋ0 =0.802 a1=3.221 a2=0.005< br />Glass thickness: 3.2 mm
Glass thickness: microprism low-metal, heat-treated safety glass
Pubbing: harp system copper, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pcs 22 mm copper connection pipes
Liquid capacity: 1.8 liters
Maximum pressure: 10 bar
Maximum operating pressure: 8 bar
Weight: 35 kg
Absorber material: black chrome
Absorbing capacity: 95 %
Emissivity factor: 5%
Insulation: 35 mm
Insulation material: glass wool
Insulation thickness: 50 mm
Idle temperature: 189 °C
Optical efficiency , η0: 74.6
Loss coefficient a1 (w/m³k2): 3.221
Loss coefficient a2 (w/m³k2): 0.005
Recommended volume flow: 30-72 liter/hour
Peak power: 1522 Wp/collector

Solar collector packaging size:
205X110X12 cm 42 kg

More information:

Premium product with a 9-year warranty!

Don't forget to choose a support frame!

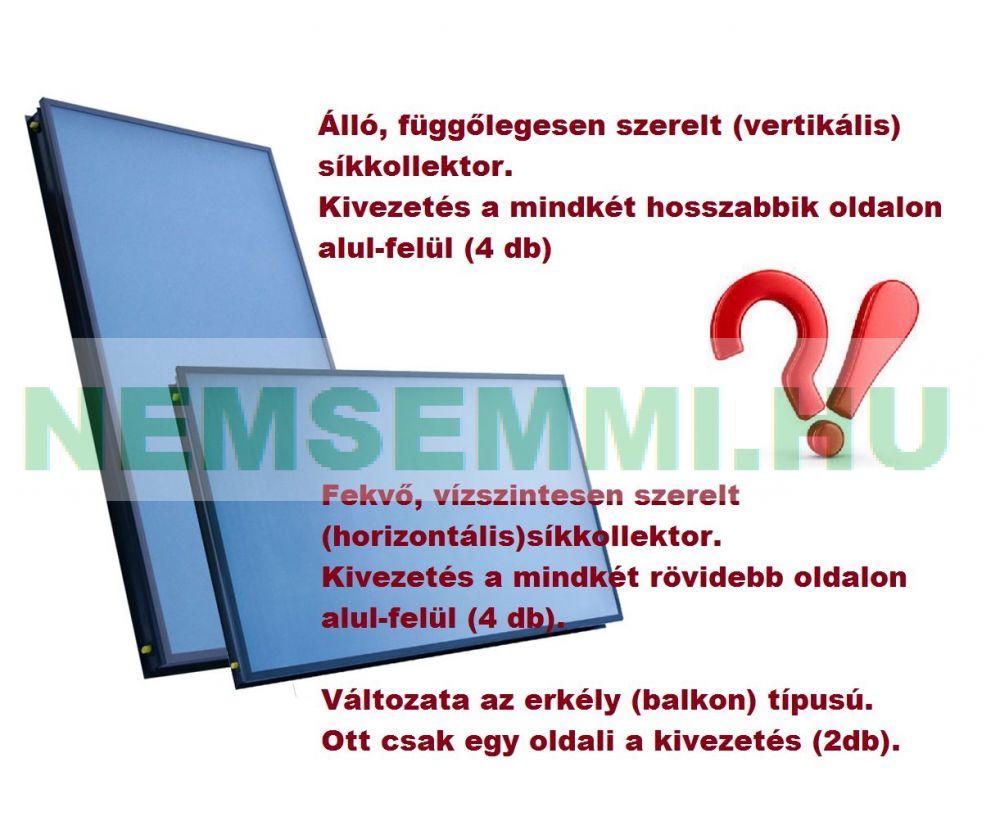

The special feature of this solar collector is its design, it can be mounted not standing, but lying on its side.
Unlike the traditional collector, the 4 connectors are on the two shorter sides!
Recommended for a place where the height of the pitched roof does not allow vertical placement, or on a balcony, balcony
would like to install the solar collector.
Flat collector, copper collecting pipe, modern, easy-to-empty transverse harp layout.
Heat-treated low-metal safety microprism glass, aluminum housing, thick insulation for solar energy utilization.
with 22 mm connectors, CE certificate
Easy installation and maintenance.

The flat collector support frame accessory is not included in the price, it can also be ordered for pitched and flat roofs, see our products.
