Extra large solar collector 2.5 m2 copper tube flat collector with extra insulation, 9.5 cm thick, 9 year warranty, good price - value!

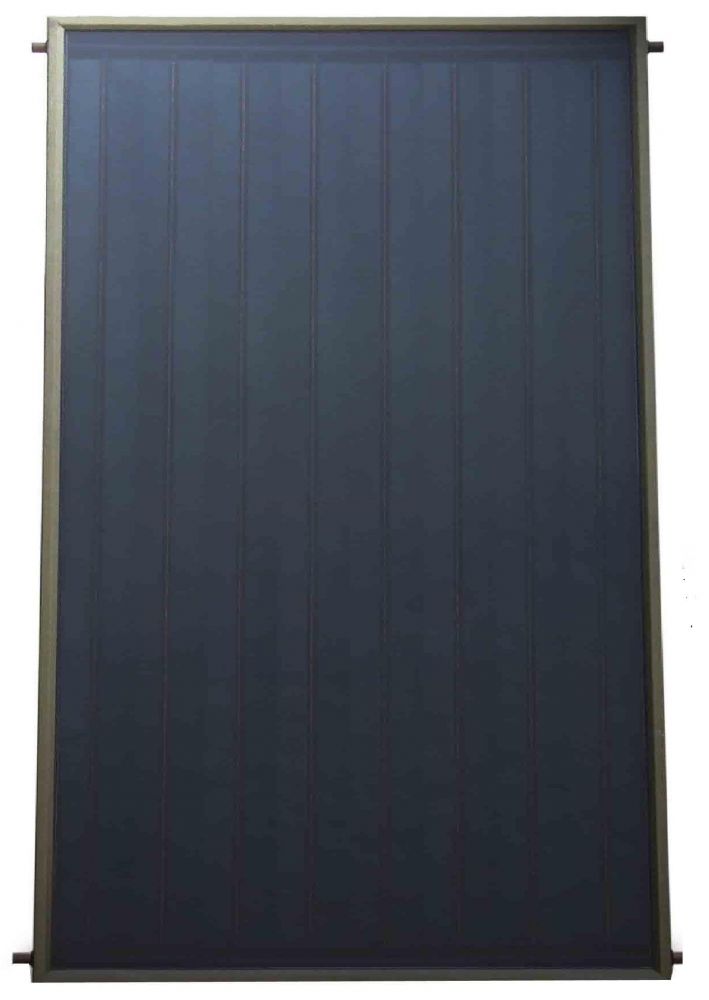

Extra large flat collector

Solar collector size WxD: 1250x2000 mm
Collector thickness 95 mm< br />Total collector surface: 2.50 m2
Aperture surface: 2.35 m2
Glass thickness: 3.6 mm
Glass thickness: microprism low-metal, heat-treated safety glass
Pipe: copper with harp system, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pcs 22 mm copper connecting pipe
Liquid capacity: 2.8 liters
Maximum pressure : 8 bar
Maximum operating pressure: 6 bar
Weight : 41 kg
Absorber material: selective black chrome
Absorbing capacity: 95 %
Emissivity factor: 11 %
Insulation material: glass wool
Insulation thickness: 50 mm
Idle temperature: 189 °C
Optical efficiency, η0: 0.66
Loss coefficient a1 (w/m³k2): 3.8
Loss coefficient a2 (w/m³k2): 0.023
Recommended volume flow: 35-78 liters/hour
Peak power per square meter 761 Wp/m2
The flat collector support frame accessory is not included in the price, it can also be ordered for sloping and flat roofs, see our products.

Harp system COPPER manifold design, with 22 mm connectors.
CE certificate

Plane collectors can be extremely useful in households, shops, institutions and many other places. Their advantages include:

• Environmentally friendly energy use: Solar energy is a renewable energy source that reduces the emission of greenhouse gases and contributes to sustainable development.

• Energy savings: By using flat collectors, property owners can reduce the use of traditional energy sources (gas, electricity, etc.), thus reducing energy bills.

• Hot water production: In many households, flat collectors are primarily used to produce hot water, which is an excellent way to reduce the use of conventional water heaters.

• Heating and cooling support: We can further increase energy efficiency and sustainability by combining flat collectors with some heating and cooling systems.

Packaging size of the solar collector:
205X135X12 cm 43 kgMore information:

Premium flat collector

Extra large flat solar collector with 9 year warranty!

With copper collector tube, heat-treated safety microprism glass, aluminum housing, thick insulation for solar energy utilization.

A flat collector is a solar energy utilization device that is used to collect and store heat energy radiated by the sun's rays. These collectors convert solar energy into heat, which can then be used to produce hot water, heating or even cooling.

The construction of the basic planar collector includes:

Absorber sheet: This sheet is black or dark in color and made of a material that effectively absorbs the solar energy. The absorber sheet collects the thermal energy radiated by the sun's rays.

Thermal Insulation: Flat plate collectors usually have a thermally insulated back panel to minimize heat loss and increase efficiency. Thermal insulation prevents heat from radiating between the back panel and the absorber.

Glass cover: The top of the flat collectors is covered with a layer of glass, which allows solar energy to enter the into the collector, while protecting the absorbers and the entire system from environmental influences.

Reliability, operational safety and longevity are guaranteed by high-quality, corrosion-resistant materials: among others, safety microprism solar glass with a low metal content (it has excellent heat resistance and a high degree of chemical resistance), and copper.
Easy installation and maintenance.
