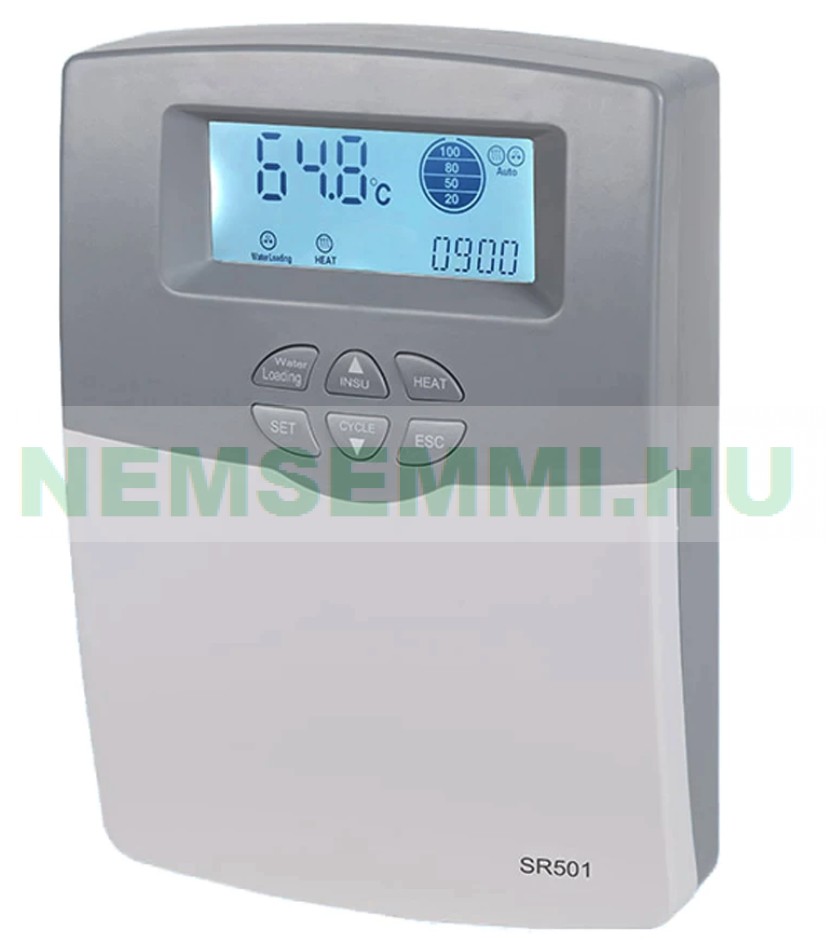

Tank solar collector control

Own consumption: 4 W
Water temperature measurement accuracy +/- 2 C°< /span>
Water temperature measurement range 0 - 99 C°
Controllable heating cartridge power max. 1500 W
Protection against water IP40
Size: 20, 5x15x5 cm

Properties
Solenoid valve
Time display
Manual heating switch
Tank water temperature, water level display
Memory function in case of power failure
Timed heating in three time intervals per day
Signal in case of sensor error

More information:

Solar collector control

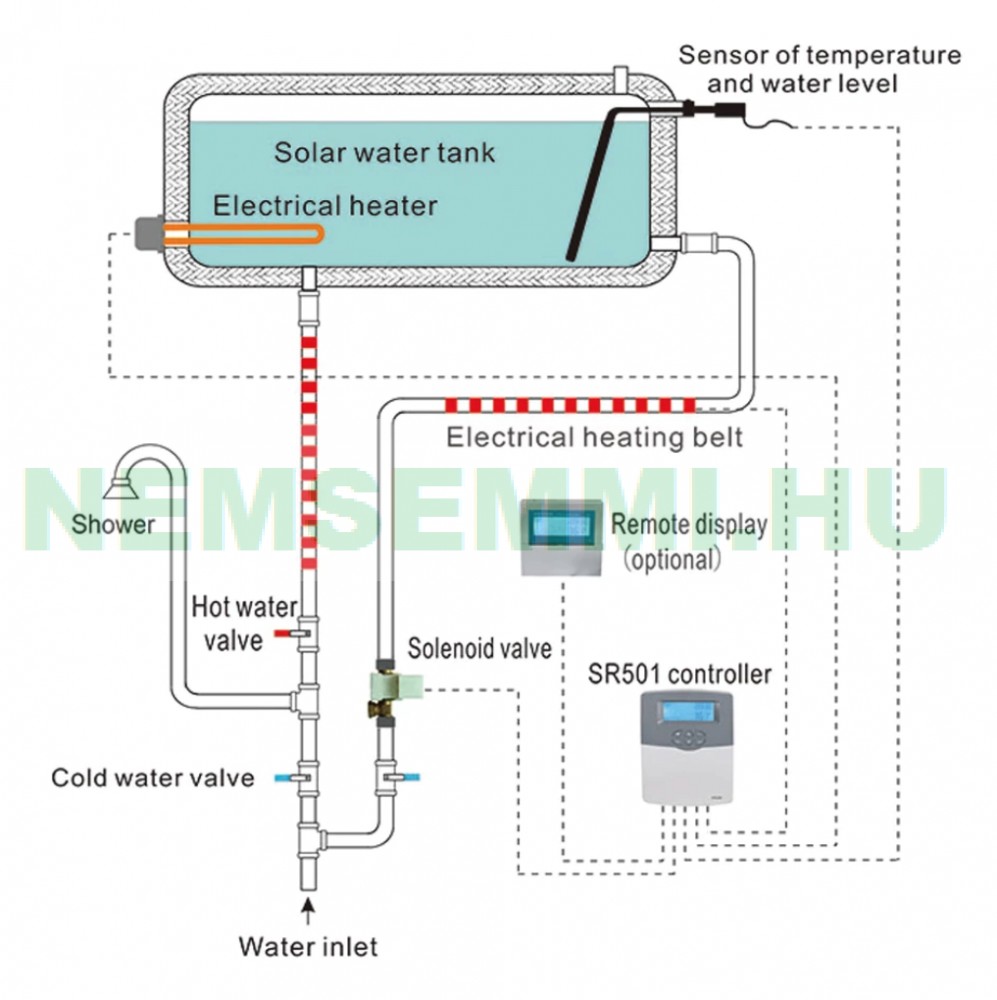

Solar collector heating control with 20 meter thermometer cable, water level display, magnetic valve for external tank solar collector.

Includes 1 NTC10K temperature sensor.

Electric heating can be integrated into the solar system as a heating auxiliary of the system and can be started automatically according to a preset time and temperature.
Within the specified period, if the tank temperature (T) drops to the activation temperature of the function, the heating assistance is activated.
If T reaches the set switch-off temperature, the auxiliary heating stops. Within 24 hours, 3 periods can be set with the controller.

The adjustable range of the heating switch-on temperature is 30°C ~ (OFF-3°C). The adjustable range of the switch-off temperature (ON+3°C) ~ 80°C

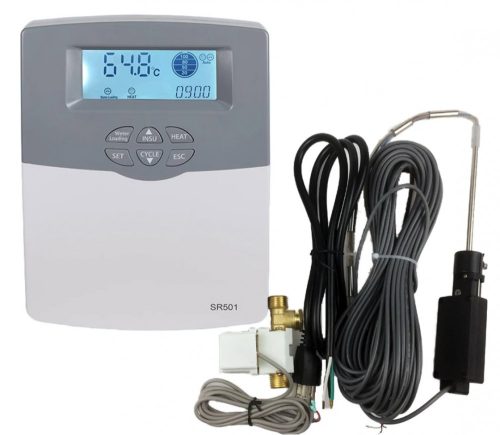

Solar collector heating control SR501 20 meter cable for thermometer + water level sensor + magnetic valve for tank solar collector with NTC10K sensor
