Floor heating

Operating voltage: 230 V/AC
Max. energy consumption: 80 watts/m²
Max. operating temperature: 80°C
Min. operating temperature: -10°C
Carpet width: 50 cm
IP protection: IPX7
Cable diameter: 1.4 mm
Connecting cable length: 3.8 m
Protection device: FI circuit breaker 30mA

Further information:

Electric floor heating under a warm cover

The extremely thin two-conductor floor heating can be used as comfort heating with an already installed heating system, as well as < span style="color: #000000;">together with a direct heating system.
The aluminum-coated textile provides even heat distribution, so it is recommended for laminate floors and parquet. The heating mat can be used in the living room, basement room, event hall, caravan, motorhome, boat or yacht.

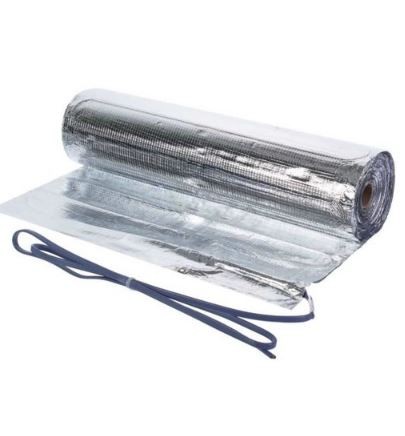

Thanks to the height of 1.6 mm, it is also suitable for rooms with a low construction height.The heating mat consists of a shielded two-conductor heating cable, which is embedded on an aluminum coated textile.
The electrical connection passes through a so-called "cold end", which connects the heating cable using reliable, tested technology.
Unlike the single-wire cable, the power supply of the two-wire system runs from only one end of the heating mat. This avoids the need to return the second connection cable.
Features

ideal for rooms with low construction height
cost-effective and energy-saving
long life
easy to install

Electric underfloor heating aluminum underfloor heating mat 80 watts/m² 1.0-15.0 m² under a warm cover
