10-tube blue vacuum tube solar collector Heat-Pipe insert Solar collector 10 vacuum tubes Solar energy utilization 6-year warranty!

Vacuum tube solar collector Heat-Pipe 10 tubes

Total collector surface: 1.50 m2
Collector useful surface: 1.30 m2
Collector width: 900 mm
Connection pipes: 2x22 mm copper
Capacity: 4.85 l
Vacuum tube diameter: 58 mm
Vacuum tube length: 1800 mm
Vacuum tube wall thickness: 1.6 mm
Absorber coating: SS-AL-Nx/Cu three target selective absorption coating
Vacuum tube wall thickness: 1.6 mm
Stagnation temperature: 250 C

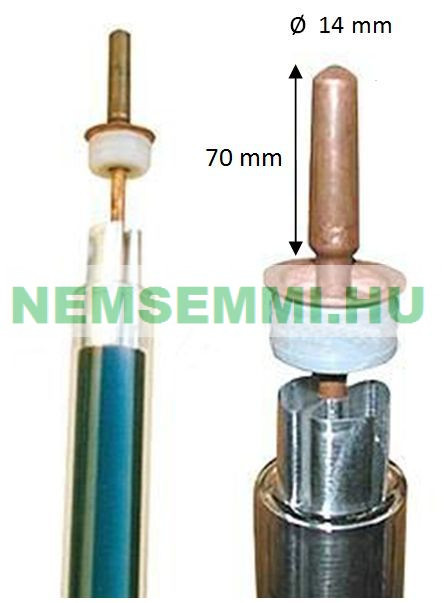

Heat-Pipe head diameter: 14 mm normal thickness
Heat-Pipe head length: 70 mm
Operating pressure: 6 bar
Maximum pressure: 10 bar

PACKING SIZE
Head: 111x16x17 cm 6 kg
Tubes 193x27x24 26 kg

Modern, 10-pipe Heat-Pipe system solar collector

Din Certco and CE certification!

Recommended for 100-liter containers.
For larger containers, we recommend several pieces or several tubular solar collectors .
The high-quality, corrosion-resistant raw materials guarantee: among others, borosilicate glass (with excellent heat resistance and a high degree of chemical resistance), copper and stainless steel. happens.

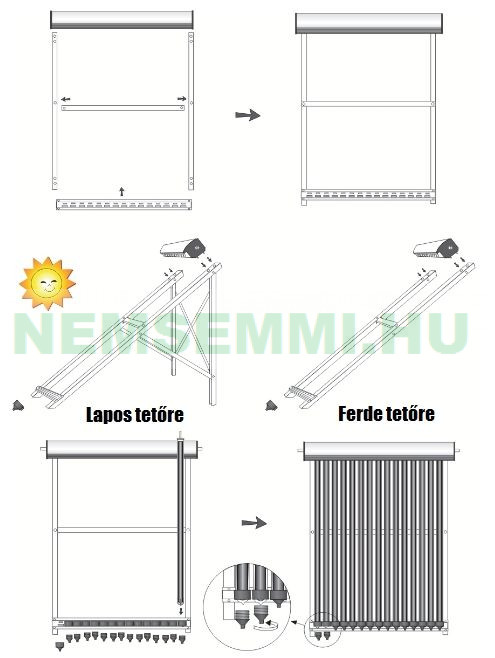

Easy installation and maintenance
The vacuum pipes are connected dry, so there is no direct contact between the heat carrier medium and the glycol-water mixture. With its application, possible replacement of pipes is possible even with a charged system.

The support frame for the pitched roof, which is also required for assembly, is included in the price!

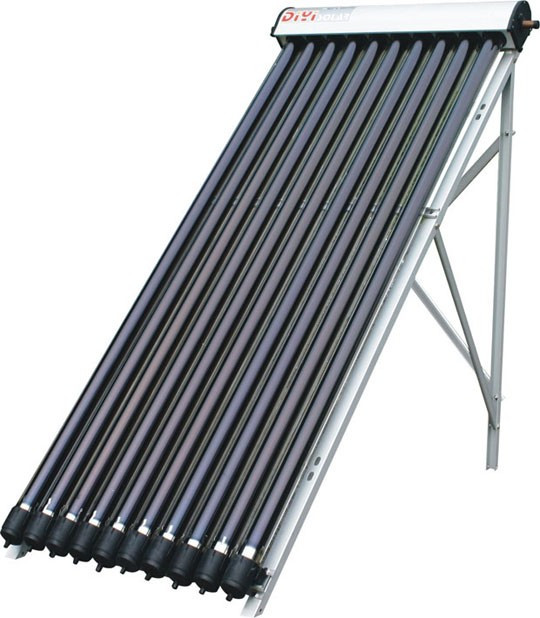

The picture shows it together with the support frame.
