Operating pressure: 4 bar
Maximum pressure: 6 bar< /p>

PACKAGE SIZE

Support frame: 170x20x15 8 kg
Head: 1 x 170x16x17 cm 10 kg
Tubes 2 x 193x27x24 cm 30 kg

More information:

Modern, 20-pipe Heat-Pipe system solar collector with 6-year warranty

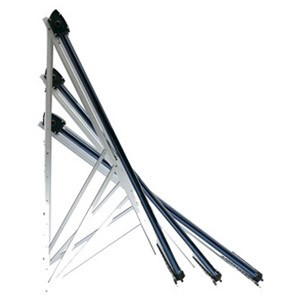

The brilliant thing about it is the support frame with an adjustable angle of inclination, with which the angle of inclination of the solar collector can be adjusted between 30° and 65°, so that the sun can shine at the optimal angle in winter and summer.
This collector is only available with the support frame and is recommended for installation on a flat roof or on the ground, where an adjustable tilt bracket makes sense.

Recommended for approximately 200 liter containers.

Reliability, operational safety and longevity are guaranteed by high-quality, corrosion-resistant materials: among others, borosilicate glass (with excellent heat resistance and a high degree of chemical resistance), copper and the stainless steel.

Solar collectors are delivered disassembled in a cardboard box.
Simple installation and maintenance

The vacuum tubes are connected dry, so there is no direct contact between the heat carrier medium and the glycol-water mixture.

Using it, possible replacement of pipes is possible even with a charged system.

The product does not include connecting pipes, roof hook and antifreeze. For health reasons, we do not recommend the toxic antifreeze, but the solar antifreeze found in our products.
Usually 10-15 liters of concentrate is sufficient.

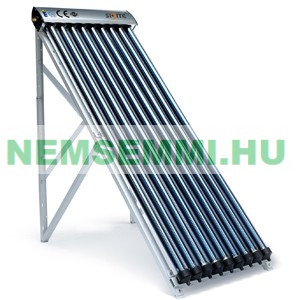

20-tube vacuum tube Heat Pipe solar collector with support frame with an adjustable angle of inclination between 30° and 65°. Can only be ordered together with a support frame!

Vacuum tube solar collector 20 tubes

Modern, 20-pipe Heat-Pipe system solar collector with 6-year warranty
