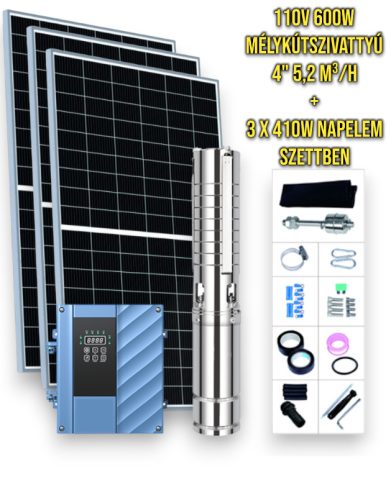

Solar irrigation pump set 110V AC/DC 750W deep well pump 5.2 m³/h 67 meters lifting height - 3 x 410W mono solar panel - solar controller - irrigation with deep well pump and solar energy!

Irrigation with solar panel and deep well pump

Deep well pump

Power: 750W
Voltage: 110V AC/DC
Maximum water flow: 5.2 m3/h
Maximum lifting height: 67 m
Pump housing diameter: 4"
Connector size: 1.25"
Connection cable length: ~2 m
Weight: 15 kg

Control technical data:

Solar controller hybrid inverter type: A110
Input power: 1500W
Input voltage DC: min. 80V
Input voltage DC: max. 420V
Input voltage AC: min. 85V
Input voltage AC: max. 280V
Input current: max 17A
Recommended operating voltage: 110-400V
Operating temperature range: -15°C - 60°C

Connector size: 1.25"
Connector cable length: ~2 m< /span>
Weight: 6 kg

Solar panel(s) with one and a half times the power of the pump is recommended.

410W half-cut Multi Busbar solar panel

New technology X-HALF CUT high-performance glass-coated monocrystalline solar cell.
These modules have better resistance, greater efficiency and more stable, longer-lasting energy production than traditional solar panels.

Voltage (Voc): 37.66 V
Rated voltage (Vmp): 31.76 V
Short circuit current (Isc): 13.66 A
Rated current (Imp): 12.91 A
Power (Pmax): 410W
< span style="color: #000000;">Breakthrough voltage: 1500V DC
Efficiency: 20.99%
Operating temperature: -40°C-+85°C
Size: 1724x1134x35 mm
Weight: 20.4 kg
Cell type: Half Mono (182x91 mm)
Number of cells: 108
Frame: anodized aluminum
Junction box: IP67, 3 bypasses diode
Output cable: 4 mm²
Connection: MC4 compatible

The package contains:
1 deep well pump
1 pump connector for the controller
1 solar controller
4 solar panel connectors
Special waterproof insulating tape
Shrink tube set
3 solar panels 410W

Solar irrigation

Irrigation with solar energy!
With the help of the high-performance solar panel and the deep well pump, you can water for free!

If garden irrigation is to be done from a drilled well, a deep well pump will be needed. The deep well pump can be used for wells where water needs to be extracted from a greater depth. By using a well and a deep well pump, you can save a lot of money!
Watering with garden slag from mains water is not only water-intensive but also expensive, whereas with water obtained from the well and the installation of an automatic irrigation system, the expenses associated with watering can be significantly reduced. However, in order for water to reach the surface from a well drilled in the garden, the water must also be lifted from there. This is where the deep well pump plays an essential role.

Our package includes solar panel, pump and solar controller.
Place the pump in the lake or well, set up the solar panel facing south, connect both to the solar controller and you're done!
If you would like to produce water in a tank , you can attach the included
water level indicator kit, which turns the pump on and off.
