Solar control

Inputs:
o 2 PT1000 temperature sensors
o 6 NTC10K, B=3950 temperature sensors
o 1 "Grundfos Direct Sensor (VFS type)"
o 1 rotary knife electronic flow sensor (FRT)

Outputs:
o 3 electromagnetic relays, max. current 1 A
o 3 semiconductor relays, max. current1 A
o 1 low-voltage relay (on/off signal), boiler on/off control

o 3 PWM variable frequency outputs (switchable 0-10 V)

Functions: operating hours counter, pipe collector function, thermostat function, pump speed control, heat quantity measurement, external heat exchange, swimming pool circulation system, adjustable system parameters and optional functions (menu structure), scale and diagnostics

Power supply: 100-240 V (50-60 Hz)
Rated pulse voltage: 2.5 kV
Data interface: TF (Micro SD)
Housing: Plastic ABS
Design: Wall-mounted
Indication/Display: System monitor display to display systems, LED display, backlight
Operation: 5 push buttons on the front panel
Protection: IP41
Protection class: I
Ambient temperature: 0-40°C
Dimensions: 208×158×43 mm

More information:

Solar collector control

This solar collector control is perfect for controlling a normal solar collector system
monitors the temperature of the collector and the tank in two places,
starts the pump if necessary .
Electric auxiliary heating can also be switched on.

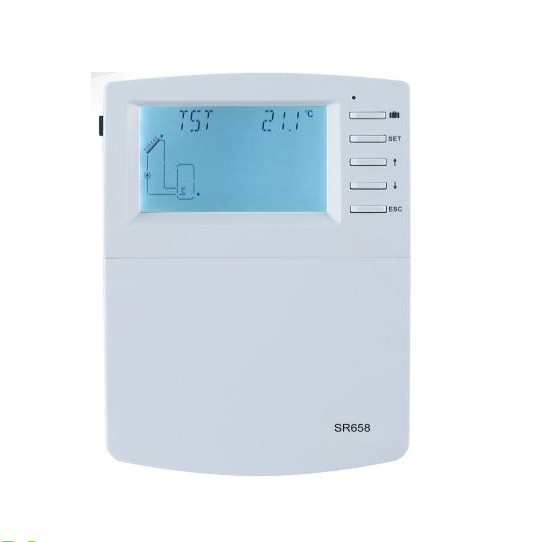

SR658 solar collector control, controller
Large screen LED display
6 relay outputs (output)
1 low-voltage relay output for switching the boiler on and off to turn it off
8 sensor inputs (input)
1 input for "Grundfos Direct Sensor TM"
1 input (FRT) for rotary knife electronic flow sensor
3 variable frequency PWM outputs for high efficiency pump
speed control
Data backup to TF card (Micro SD)
19 selectable systems

Product includes:
1 pc SR658 controller< br />1 user manual
2 PT1000 temperature sensors ( φ6×50 mm, cable length: 1.5 meters)
4 NTC10K temperature sensors (φ6×50 mm, cable length: 3 meters)
1 additional bag
1 power cable

The controls are pre-programmed, personalization is not complicated.
If you are a professional equipment and programming, if you buy the product we can recommend a contractor who Bp. It also goes to homes within a 100 km radius.
