Wind Generator

Maximum power: 800 W
Nominal power: 700 W< br />Voltage alternating current, 48 VMaximum voltage: 16 A
Wind speed required for rotor rotation: 4 m/s
Wind speed performance chart between images!
Maximum wind speed: 40 m/s
Nominal power delivery: 13.5m/s
Number of blades: 3
Rotor diameter: 190 cm
Rotor length: 90 cm
Rotor material: Polyamide 30% with fiberglass!
Maximum noise level: only 40 dB
Size: 31x61x41 + a rotor
Weight: 19 kg

Maintenance-free: The design of the gold-plated contacts and carbon brushless generator minimizes maintenance requirements, thus ensuring long-term reliable and low-maintenance operation.< /span>
High Efficiency: The three blade design provides optimal efficiency at low wind speeds also, increasing the performance of the generator.
Gold-plated sliding contacts: In order to protect the wires from twisting, we use gold-plated sliding contacts, which ensures the uninterrupted and smooth operation.
Unique Design: The horizontal shaft design increases the stability of the generator and reduces the noise level, making it an ideal choice for home installation.
Environmentally friendly materials: The generator is excellent it is made of high-quality, durable materials that are resistant to weather conditions and ensure a long service life.
Simple Installation: The product is easy to install for home use and includes a variety of accessories for easy integration.

More information:

Wind generator for a small home power plant!

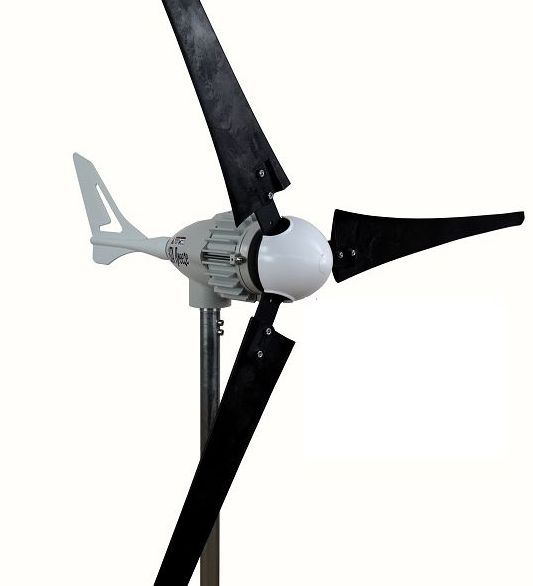

48V Breeze I-700 wind generator. It is particularly suitable for charging the battery of household-sized, isolated systems, but can also be used to ensure the power supply of outdoor areas.
Robust aluminum housing with fiberglass-reinforced plastic blades.
Maintenance-free, gold-plated contacts, generator without carbon brushes
Against wires from twisting the wind generator is equipped with gold-plated sliding contacts!

Environmentally friendly energy saving and transition to self-maintenance can be the key to horizontal-axis, 3-bladed wind generators, which are excellent for home installation. These generators efficiently utilize wind energy and ensure a reliable and clean power supply.
Maintenance-free, gold-plated contacts, carbon brush-free generator
The housing is made of one piece, which makes it particularly durable. We recommend a 1 1/2" pipe pole for installation, see our products.
Choose reliability and sustainable energy with the horizontal axis 3-blade wind generator for your home energy needs. With gold-plated contacts and a maintenance-free design, this generator is the optimal solution can be for a self-sustaining lifestyle.

In connection with the product, we would like to draw your attention to the fact that the windmill may only be operated with a charge controller in which the speed-dependent engine brake is integrated, which ensures the overspeed braking of the wind wheel via the generator, which in this case functions as a magnetic brake.

2 year warranty!

Wind generator wind wheel wind turbine max. 700W AC 48V Breeze i-700 wind energy 190 cm rotor diameter. 2 year warranty!

Wind Generator

Wind generator for a small home power plant!
