Wind generator

Maximum power: 500 W
Nominal power: 400 W< br />Voltage alternating current, 12V 3-phase alternating current
Wind speed required for rotor rotation: 3 m/s
Maximum wind speed: 45 m/s
< span style="color: #000000;">Rated power output: 12.5 m/s
Number of blades: 3

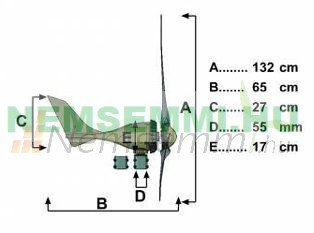

Rotor diameter: 122 cm
Rotor material: Polyamide 30% with fiberglass!
Maximum noise level: only 35 dB
Weight: 4.5 kg

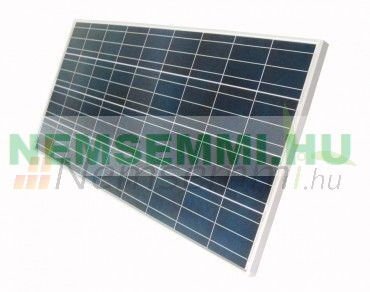

Solar panel:

Size: (L x W x H) 1000 x 683 x 30mm
Voltage at rated power: Vpmax: 17.8 V
No-load voltage: Voc 22.1 V
Power: 100 Wp Rated current: 5.62 A
Short circuit current: 5.92 A
Operating range: -40℃ - +85℃
No-load voltage: 22.18 V
By-Pass Diode 12 Amps
Safety glass: 3.2 mm
Weight: 8.1 kg

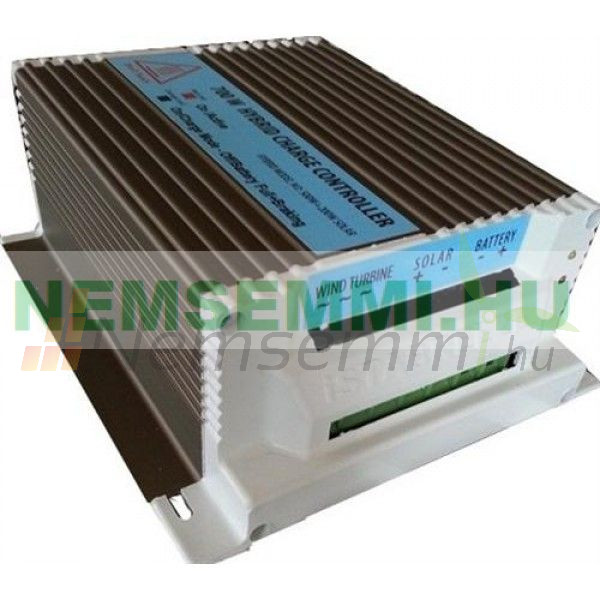

Charge controller:

Input: 12V AC 3-phase max for 500W windmill
+ 12V DC direct current max For 150W solar panel
Output: 12V DC direct current

Recommended battery: 150-200 Ah, but minimum 100 Ah!
Lighting diodes meaning: Charging, Battery connected, Charged
Built-in charge controller, which when the battery is charged, or excessive brakes the wind wheel at wind speed.

Size: 16x12x6 cm
Metal case design with cooling fins

More information:

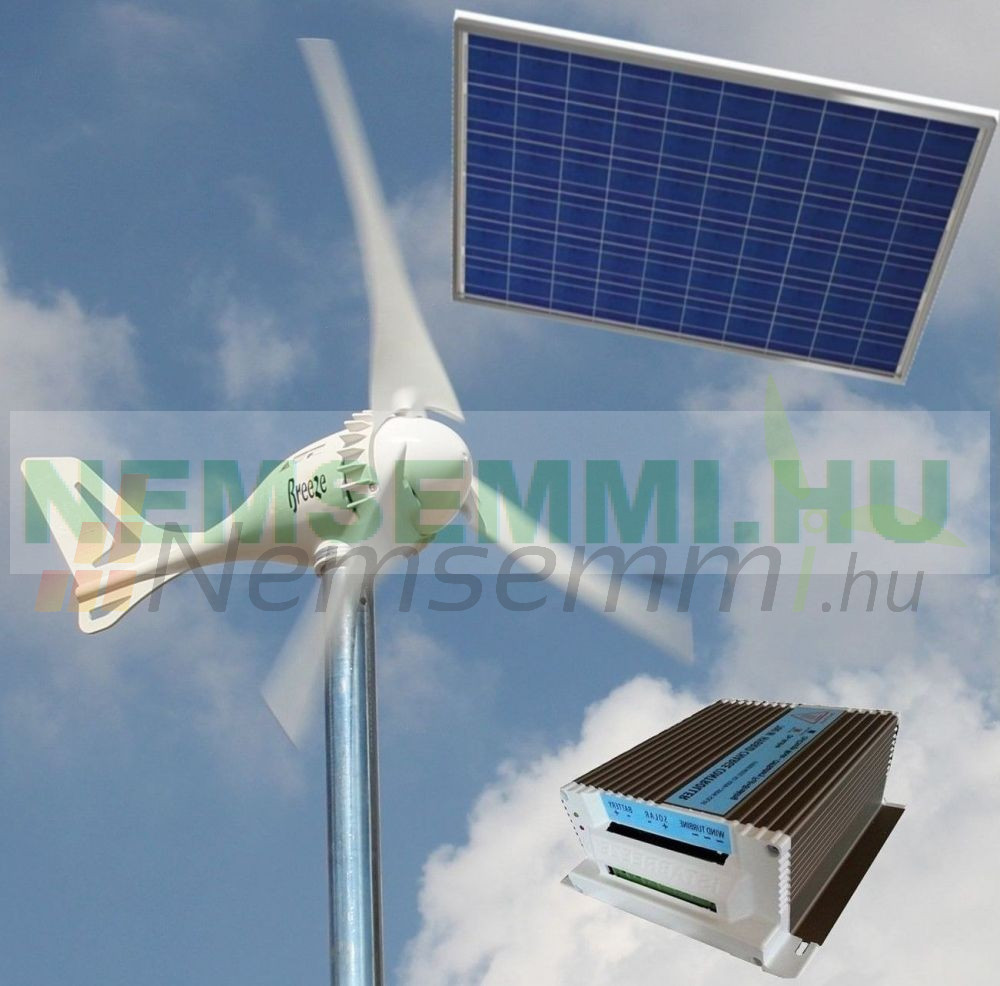

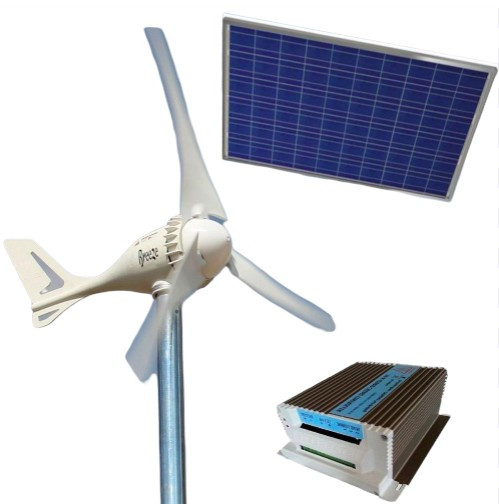

Windwheel, solar panel and charge controller

In one package for less windy places.

Breeze L-500 wind wheel 12V 500W 122 cm
12V 100 W polycrystalline solar panel< /span>
500+150W hybrid charge controller

It rarely happens that neither the sun shines nor the wind blows!
The package may require additional cables and connectors!

Windmill 12V 500W 122 cm + solar panel 12V 100W + 12V hybrid charge controller for both. Wind and solar energy stock. 132 cm rotor diameter
