Windwheel 24V 1200W 210 cm + solar panel 41V 310W + 24V hybrid charge controller for both. Wind and solar energy stock. 210 cm rotor diameter

Wind generator

Maximum power: 1200 W
Nominal power: 1000 W< br />Voltage alternating current, 24V
For rotor rotation required wind speed: 3m/s
Maximum wind speed: 60m/s
Nominal power output: 12.5m/s
Number of blades: 3
Rotor diameter: 210 cm
Rotor material: Polyamide with 30% glass fiber!
Length of rotor blades: 100 cm
Maximum noise level: only 35 dB
Weight: 25 kg
SOLAR
Monocrystalline solar panel
dimensions l x w x m 1680 x 990 x 40 mm
operating temp. range -40°C +85°C
Solar panel
cell type monocrystalline
number of cells/module 60 pcs
cell dimensions 157 x 157 mm
Solar panel TECHNICAL DATA
maximum power 310Wp
nominal voltage 33.0V
no-load voltage (Voc) 41.0V
rated current 9.52A
short circuit current (Isc) 9.90A
Efficiency: 18.8%
Insulation voltage: DC 1000V
By -Pass diode 20 A
Glass /safety/ thickness: 2 mm
Weight: 22.8 kg

CHARGE REGULATOR
Aluminum housing
Connection for 24V 3-phase windmill max 1000W
Connection for a 24V DC solar cell max. 600W
Connection to 24V battery
Overload protection.< /span>
In case of stormy winds, the magnetic brake of the wind wheel brakes the wind wheel, therefore it is necessary to connect a battery to the system.

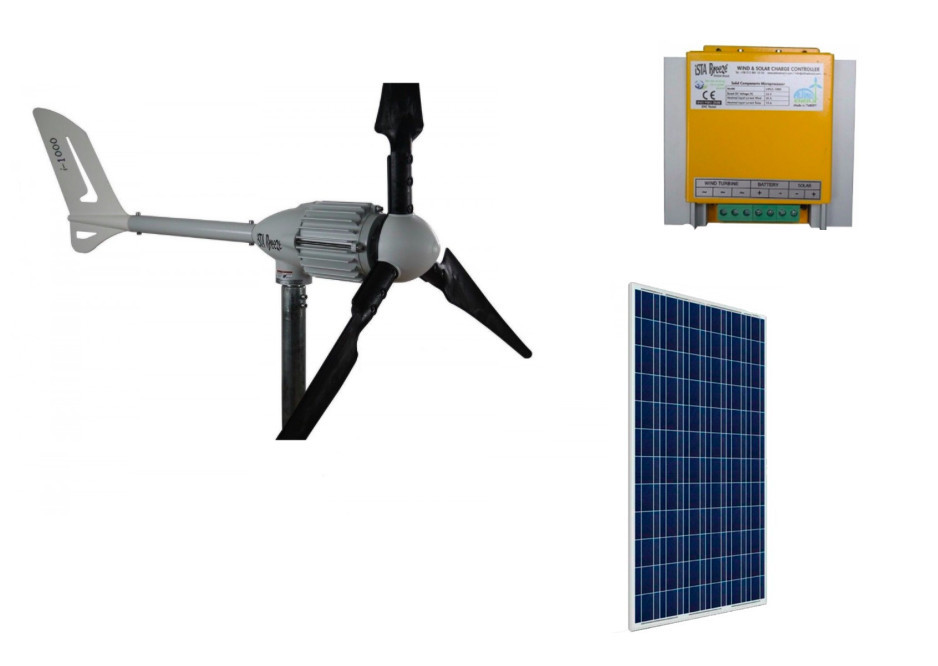

Windwheel, solar panel and charge controller.

In a package for windier places, with a rotor diameter of 103 cm.

Breeze I-1000 wind wheel 12V max 1200W
24V 310 W monocrystalline solar panel
1000+600W hybrid charge controller

It rarely happens that neither the sun shines nor the wind blows!
The package may require additional cables and connectors!
