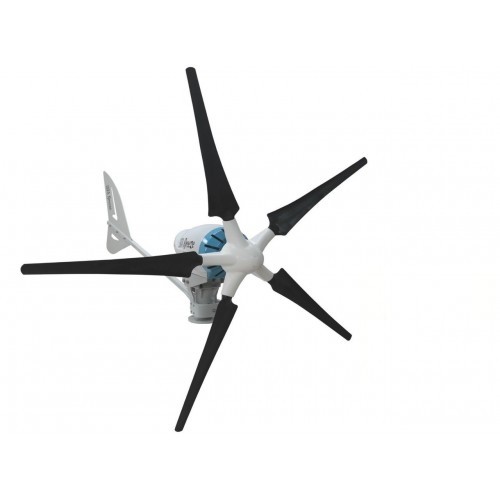

Wind generator 48V 2000W

Rated power: 2000 W
Nominal voltage 48V
Speed range: 0-800 Rpm
Efficiency: 92%
Coating: hand laminated and lacquered
Number of blades: 5
Blade length: 107 cm
Rotor diameter: 225 cm
Maximum noise load: only 40 dB

In connection with the product, we would like to draw your attention to the fact that the windmill may only be operated without supervision with a charge controller that has a speed-dependent engine brake built into it, which from a continuously connected battery, it ensures braking of the wind wheel against overspinning via the generator, which in this case functions as a magnetic brake.

More information:

Offgrid wind generator

It is ideally suited for charging the battery of household-sized, isolated systems, but it can also be used to ensure the power supply of outdoor areas.
Universal application in low, medium and strong winds
3-phase permanent magnets (High efficiency in thanks to strong permanent magnets (NdFeB magnets)
Aerodynamic design
Powder-coated aluminum housing
Low noise
UV-resistant plastic + 30% fiberglass paddles
Power transmission via a slip ring, thus preventing the cable from twisting
Durable and low maintenance
