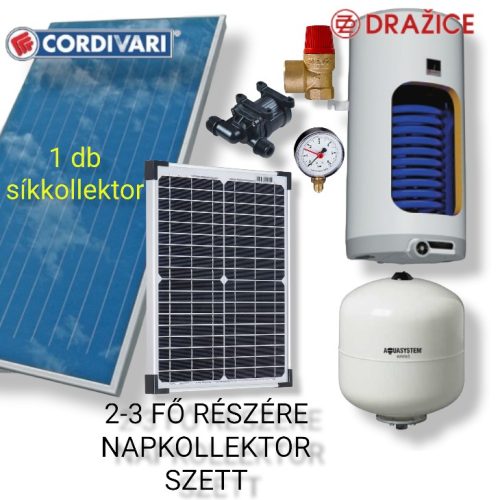

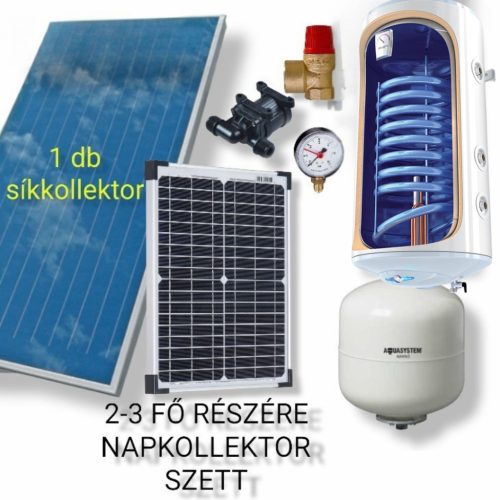

Solar + premium Cordivari flat collector solar collector system with 100 liter heat exchanger boiler, 12V pump, 20W solar panel, expansion tank, safety valve

Premium collector with solar panel

The system includes:

1 pc Premium flat collector + the corresponding mounting frame with an inclined roof< /span>

Size: 1007x2006x85 mm
Collector thickness 85 mm
Total collector surface: 2.00 m2
Aperture surface: 1.86 m2
Glass thickness: 4.2 mm
Glass thickness: microprism low-metal, heat-treated safety glass
Pipe: copper with harp system, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm
Connections: 4 pcs 22 mm copper connecting pipe
Liquid capacity: 1.5 liters
Operating pressure : 10 bar
Maximum pressure: 15 bar
Absorber material : selective blue metal
Emission factor: 11%
Insulation thickness: 30 mm
Insulation material: rock wool
Idle temperature: 152 °C
Efficiency, η: 78.8%
Loss coefficient a1 (w/m³k2): 5.14
Loss coefficient a2 (w/m³k2): 0.017
Recommended volume flow: 30-72 liters/hour
Peak power per square meter 1522 Wp/collector 761 Wp/m2

Solar storage boiler in 100 liter design, with 3 kW electric heating, internal heat exchanger spiral< /span>

Stored water volume: 100 l
Permitted operating pressure: 8 bar max 95 °C
Size of heat exchanger (pipe snake): 0.53 m²
Heat exchanger volume: 2.7 l (this amount of antifreeze liquid is taken up by the heat exchanger)
3 kW electric heating element< br />The heat exchanger is tested at a pressure of 25 bar.
Max operating pressure of heat exchanger: 16bar
Max temperature of heat exchanger: 110 °C
Polyurethane insulation thickness: 32mm
Tank wall thickness: 2.5mm
Inner coating of tank: titanium enamel

12 volt solar pump
Carbon brushless motor
Operating voltage: 9-14V
< span style="color: #000000;">Power max: 13.2 W
Current consumption max: 1.1A
Maximum output: 720l/hour
Maximum lifting height: 4 meters
Maximum pressure tolerance 6 bar
Maximum water temperature: 85 °C
Dimensions: approx. 8x8x5 cm
Connections: 1/2" parallel
Water, oil and gasoline resistant
IP68 protection, waterproof it can also be operated while submerged

12V solar panel
Size(L x W x H): 340 x 440 x 25 mm
Rated voltage: Vpmax 17.25 V
Power: 20 Wp
Rated current : 1.16 A
Short-circuit current: 1.23 A
Operating range: -40℃ - +85℃
Insulation voltage: DC 1000V
No load voltage: Voc 21.45 V

Pressure watch
Measuring range: 0-4 bar
Connector size: 1/4"

Safety valve
Blow-off: at 6 bar
Connection size: external 3/4"

Solar expansion tank
< span style="color: #000000;">18 liter

The assembly does not include the antifreeze liquid, the roof hook, or the pipeline and its connectors
We recommend using solar antifreeze for the system, which is non-toxic, unlike antifreeze used for cars.

More information:

Solar collector set

With the solar package included in the offer, the hot water needs of 2-3 people can be met.
Its special feature is the 12 volt pump, solar panel design.
Good toy and really environmentally friendly solution! When the sun shines, the water in the collector heats up and at the same time the small pump powered by the electricity produced by the solar panel starts, which circulates the heated water into the heat exchanger boiler.
If there is no sunshine, there is no circulation.
The the expansion of hot water is taken over by the expansion tank, for safety's sake we deliver it with a safety valve and a pressure gauge.

Mount the solar collector and the solar panel next to it in the south direction, at a steep angle of 45-50 degrees. Connect the upper outlet of the solar collector with the upper heat exchanger of the boiler, the lower one with the lower one. The height difference should not be greater than 2 meters, the distance between the two should preferably not be longer than 5 meters. Between the bottom heat exchanger of the boiler and the bottom outlet of the flat collector, install 2 T fittings and the pump next to it, connect the solar panel to it. The correct flow direction at the pump is from the storage tank to the solar collector.
Install the safety valve on outlet 3 of one T fitting, and a ball valve on the other T fitting tap, fill the system with solar antifreeze and you're done!

This package 1 pc 2 m2 Cordivari flat collector, plus for with frame, with 12 volt heat-resistant pump, with 12V 20W solar panel , with MC4 connector, with expansion tank, with pressure gauge,  with 6 bar safety valve and Sunsystem 100 liter tank with 1 heat exchanger delivered.

Trick for filling the system: The system should be filled with 2 bar pressure, but not everyone has a filling pump at home. Recommendation: install a manual venting valve on the upper outlet of the flat collector (you can find it among our products).

Slowly charge the system concentrated !! with antifreeze on top, in place of the bleeder valve, then reinstall the valve.
Then, using a slag and a garden tap at the ball valve, push clean water into the system until it reaches 2 bar. Then vent several times on top and you're done.

The capacity of the solar collector is 1.8 liters, the heat exchanger of the boiler can hold 2.7 liters of antifreeze, the pipeline can hold approx. 3-4 liters. Due to the expansion tank, the system can take up approx. 5-6 liters of extra water, so it will be a safe antifreeze mixture at the end. It takes a few days of use for the water and antifreeze to mix well, so it's worth checking before the frosts.
