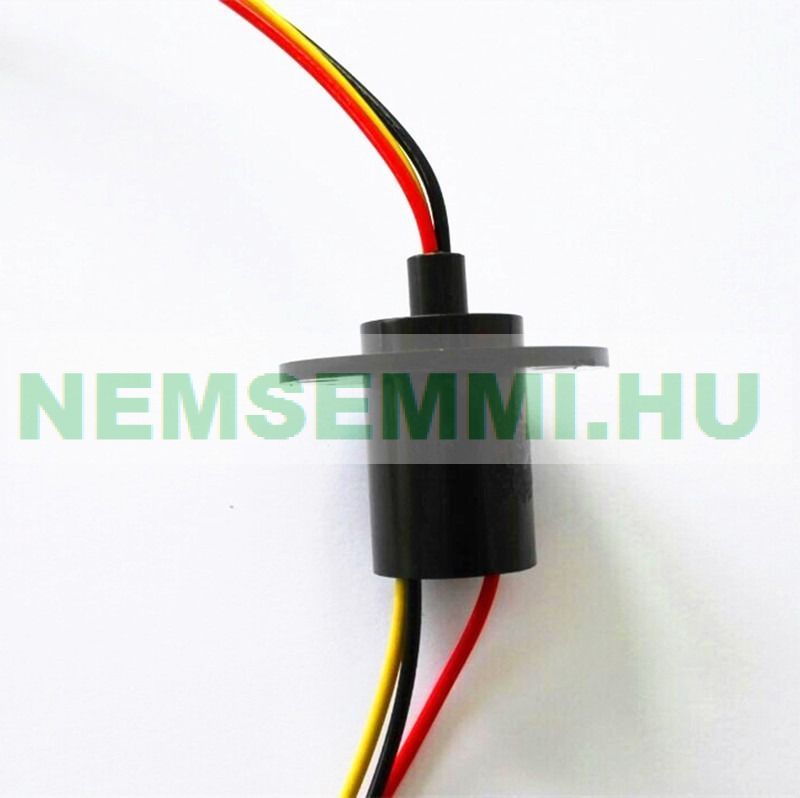

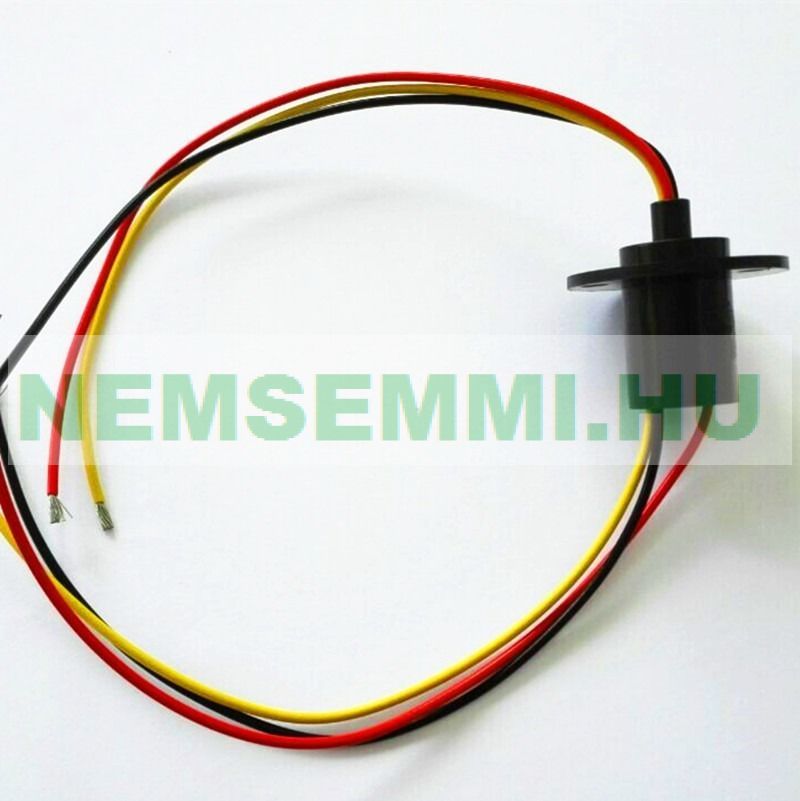

Slip ring

Dust and moisture-proof design
For direct current, as well as single and three-phase wind turbines!< /span>
Diameter: 22 mm
Length: 35 mm

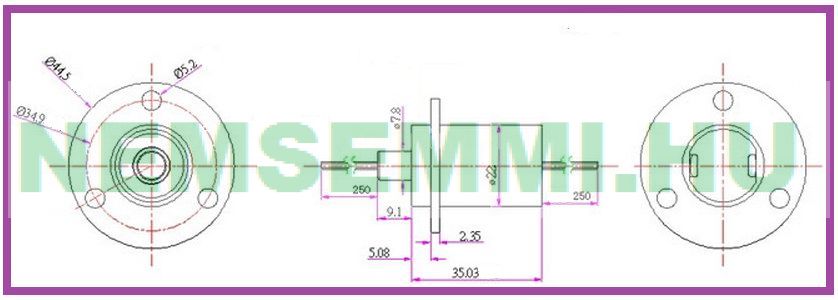

More dimensions on the drawing
Maximum current: AC or DC 500V 10A
Operating speed: 0-250 rpm
Operating temperature: -40℃ - +80℃
Cable length: 200 mm
Protection: IP51

More information:

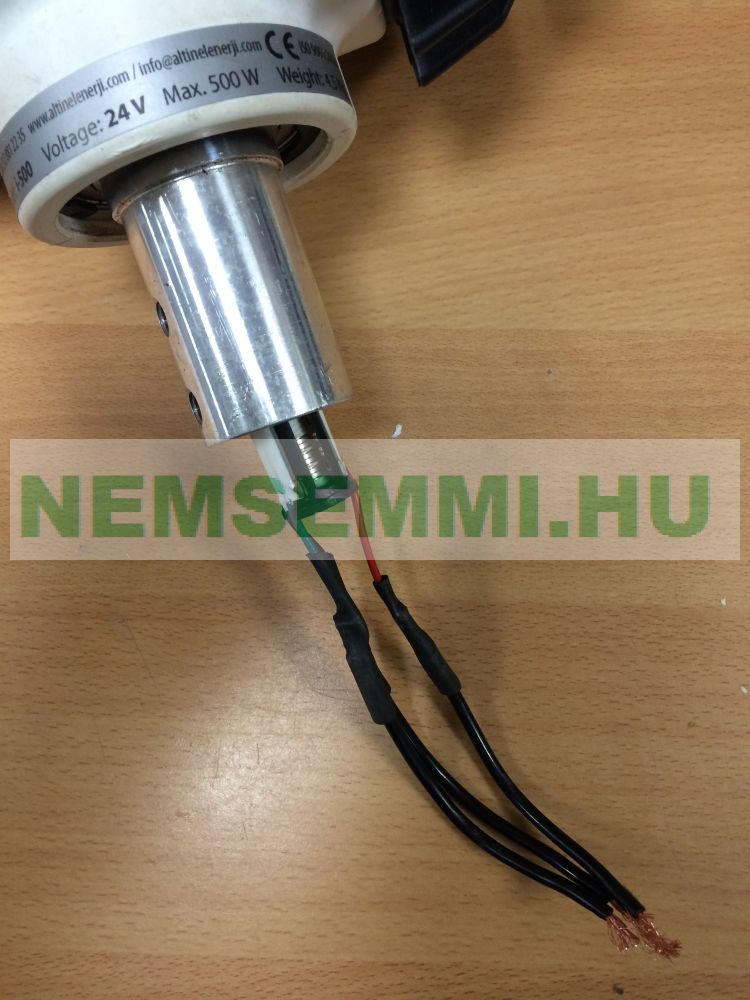

Rotary contact that can be built into a sliding ring in a wind wheel or wind turbine

It must be installed under 3 wires at the beginning of the column, it prevents twisting of the wind wheel and column cable, with gold-plated contacts.

A slip ring is a device that allows current to be transferred between the generator and the rotor without physically connecting the two parts together. Thanks to the slip ring, current can flow continuously between the rotating rotor and the fixed generator, so that the electrical energy can be transmitted without interruption.

The use of slip rings in wind turbines is important because the movement of the rotor changes continuously with the change of wind direction, but the current transmission must remain stable so that the generator continuously produces energy. Therefore, slip rings are crucial for efficient and reliable wind energy conversion.

A slip ring can be built into a wind wheel or wind turbine. 500V 10A Wind generator rotating contact, 3-wire, against cable twisting, with gold-plated contacts.

Slip ring

Rotary contact that can be built into a sliding ring in a wind wheel or wind turbine
