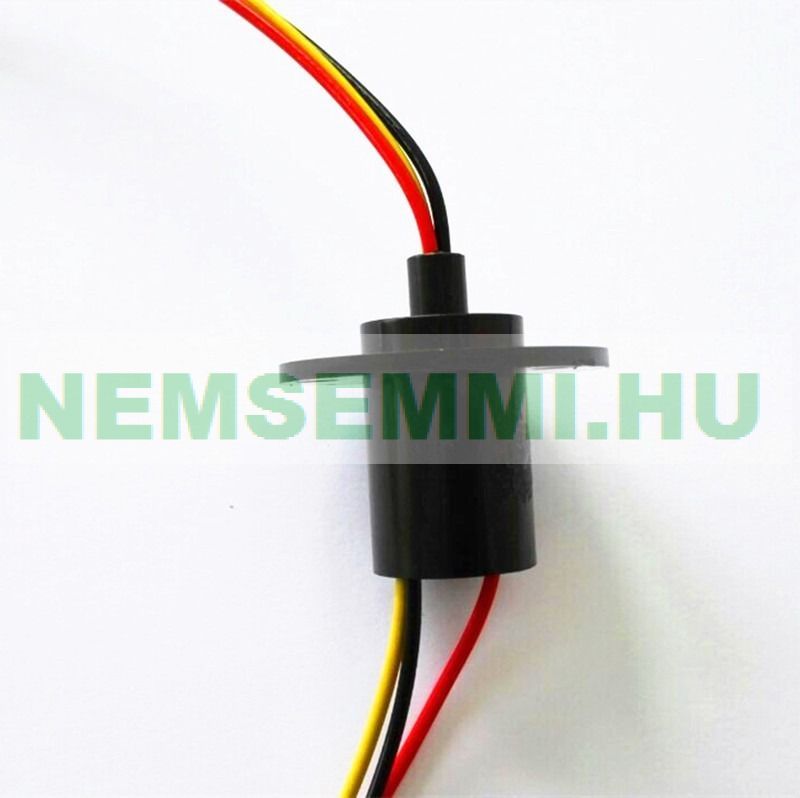

Sliding contact with dust and moisture proof design

Gold-plated contacts
For direct current, as well as single and three-phase windmills!
Diameter: 22 mm
Length: 35 mm

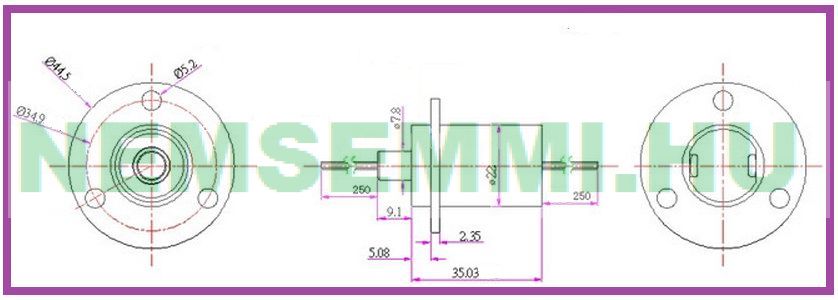

More dimensions on the drawing
Maximum current: AC or DC 600V 30A
Operating speed: 0-250 rpm
Operating temperature: -40℃ - +80℃
Number of wires: 3
Cable length: 200 mm
Protection: IP51

More information:

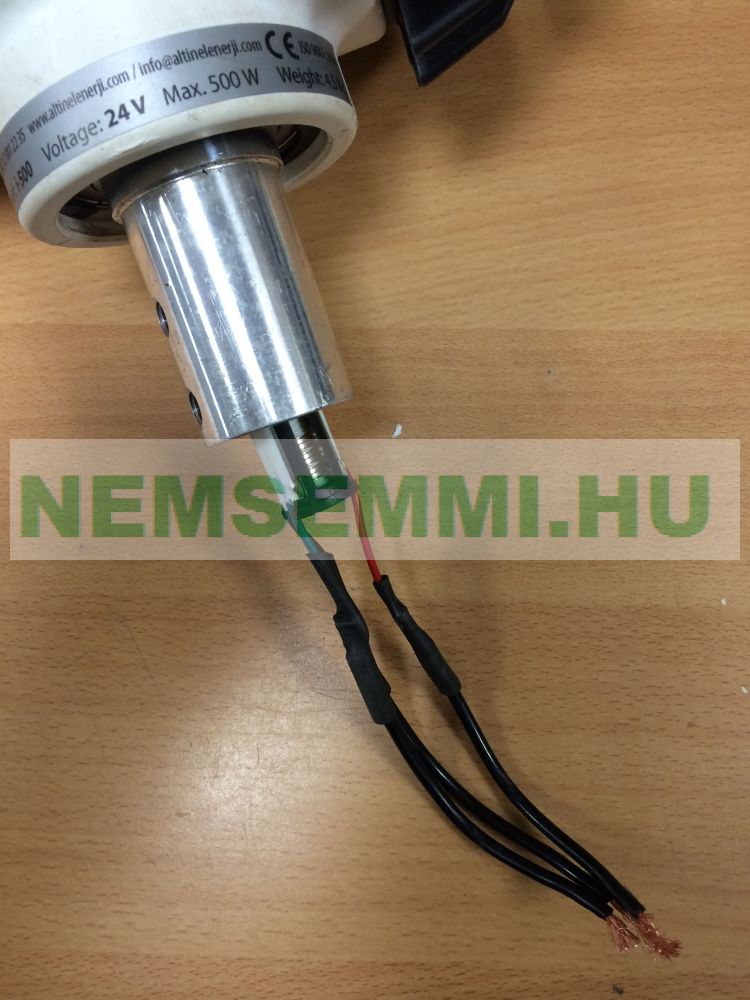

Slip ring rotating contact that can be built into a wind wheel, wind turbine

be installed under 3 wires at the beginning of the column,
between the wind wheel and the column prevents cable twisting, with gold-plated contacts.

A slip ring is a device that allows current to be transferred between the generator and the rotor without physically connecting the two parts together. Thanks to the slip ring, current can flow continuously between the rotating rotor and the fixed generator, so that the electrical energy can be transmitted without interruption.

The use of slip rings in wind turbines is important because the movement of the rotor changes continuously with the change of wind direction, but the current transmission must remain stable so that the generator continuously produces energy. Therefore, slip rings are crucial for efficient and reliable wind energy conversion.

Slip ring wind wheel, can be built into a wind turbine. 600V 30A Wind generator rotating contact, 3-wire, against cable twisting
