Details

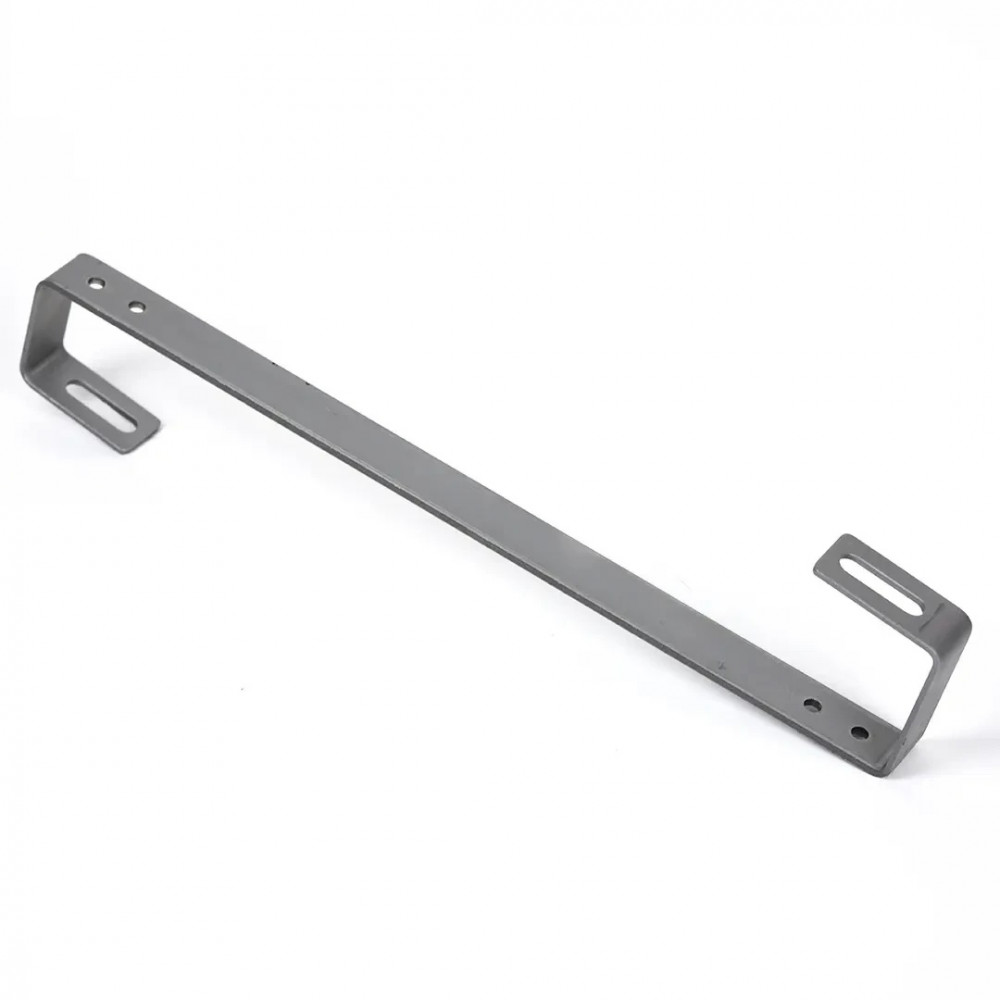

Roof hook for solar panel

Material: rstainless steel 1.4016 (H17) grade 430
Length: 450 mm
Width: 30 mm
Thickness: 4 mm
Flat bar size: 30x4 mm More information:

Roof hook for mounting a solar collector

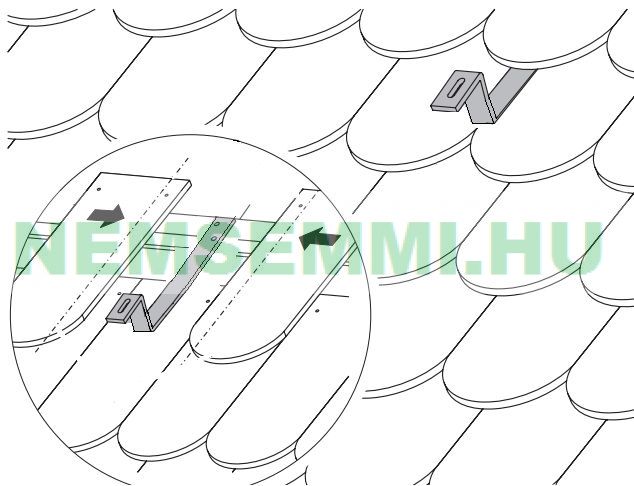

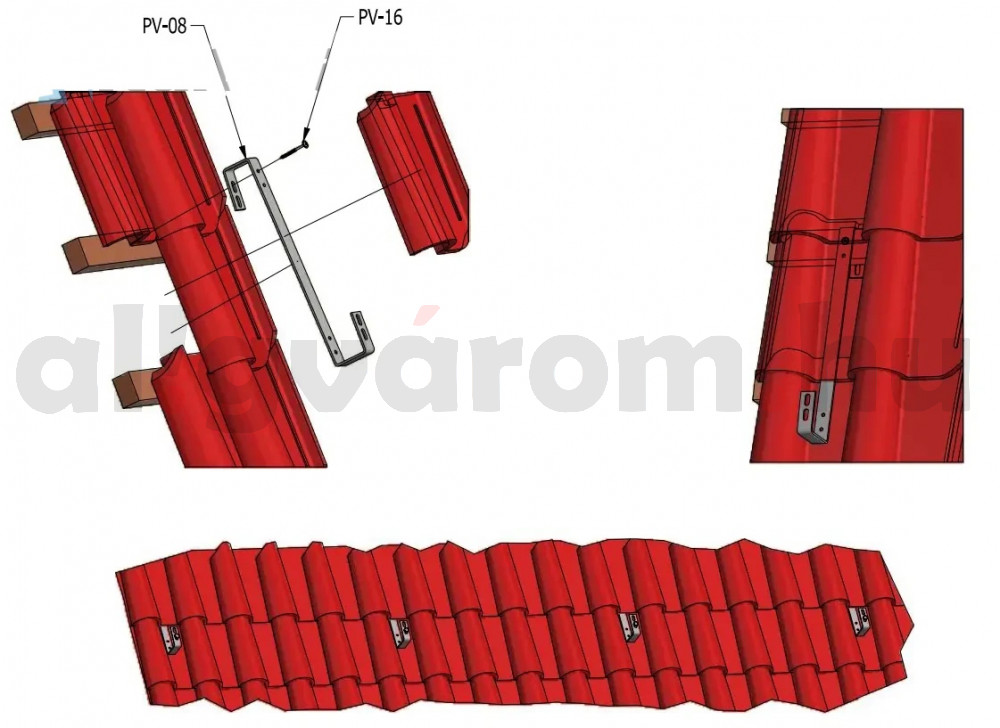

The roof hook is used for installing flat or vacuum tube solar collectors and solar panel modules on roofs covered with ceramic or concrete tiles. The holder enables mounting rails of 40×40 mm on slats with a maximum thickness of 50 mm. It is made of stainless steel, so it provides protection against the elements. The upper part of the element is equipped with an M8 hole, which allows the bracket to be screwed to the slat and increases the rigidity of the structure.

The price refers to 1 piece, a mounting frame usually requires 4 pieces.

Info

Vonalkód:

5202303161003

EAN kód:

5202303161003

MPN:

NS161003

Weight:

1 kg/pcs

Minimum order quantity:

4 pcs
