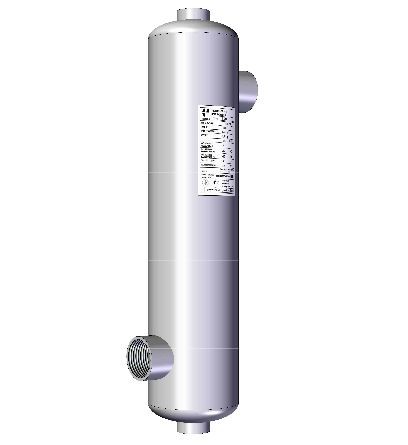

Nordic cylindrical heat exchanger 105kW, pool heater, stainless steel, recommended for up to 120m3 pool to replace Spirec swimming pool heat exchanger

• Details
• Info
• Opinions

Details

Diameter: 90 mm
Total length: 830 mm
Connectors:
Spiral pipe (heating) side: 2 x 1½" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 2" internal thread K2, K3
Heat exchanger surface: 0.85 m2
The plates material: W 1.4401 (AISI 316L)

Rated power: 105 kW at a temperature difference of 60 °C T

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
heating side: 48 l/min
Heated side: 358 l/min

Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Pool heat exchanger 105 kW to replace a Spirec type heat exchanger
stainless design

For floor heating, swimming pool water heating
Useful hot water for production
Solar energy utilization heat exchanger
As a heat pump heat exchanger
For cooling and heating oil

Info

Vonalkód:

3202312211591

EAN kód:

6971107630096

MPN:

NS002603

Weight:

6.5 kg/pcs
