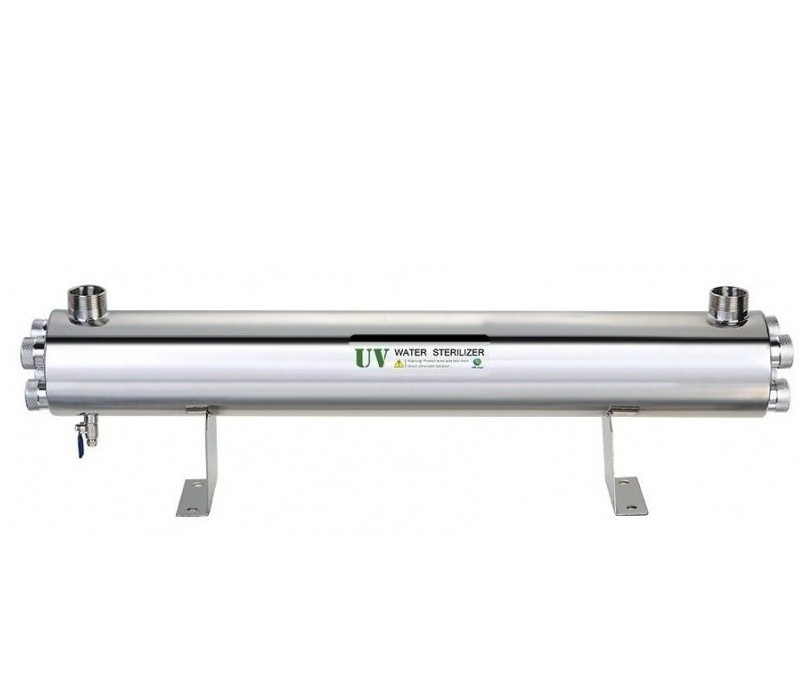

Industrial water disinfectant, with built-in 220 W PHILIPS UV sterilization lamp, in a stainless steel housing. Suitable for disinfecting 11,250 l/h of water.

UV lamp sterilizer

Voltage: 230 V
UV lamp type: PHILIPS
Expected UV lamp lifetime: 10,000 operating hours
Reaction chamber length: 965 mm
Reaction chamber diameter: ⌀133 mm
Lamp power: 4x55 W
Connection dimensions: 1+1/2"
Nominal flow:
-UVC at a dose of 300J/m²: 11.25 m3/h
-UVC 400J/m² dose: 8.5 m3/h
Operating pressure: 10 bar
Weight: 6000 g
Material: S304 stainless steel
Accessories: "O" ring, handle, UVC lamp, adapter

ATTENTION! Avoid direct contact with the skin or eyes!
The UV sterilizer should only be turn it on when assembled!

Industrial water disinfectant

UV sterilization equipment up to 270,000 l/day water purification capacity.

• Using a built-in UV-C lamp, it destroys bacteria, viruses and other biological particles that may be in the water with high efficiency.
• Simply install the water disinfecting UV sterilizer in the plumbing system, then connect it to the mains power source and disinfection can begin!
• The effect of UV rays on living organisms

UV rays eliminate the presence of bacteria, viruses, fungi and other living parasites.
The water only has an effect if it touches it directly, so the process takes place in a so-called reaction chamber, which is a stainless steel tube, and inside it is a PHILIPS UV sterilization lamp.
The advantage is that the water does not absorb UV rays, so the UV radiation does not escape from the chamber.
It is therefore very important that you only operate the UV lamp when it is in the reaction chamber!
Be careful not to shine directly into your eyes!
Most often in industrial or large it is
used to disinfect swimming pools.
The UV sterilizer does not modify the chemical composition of the water (neither its temperature nor its pH value)
ATTENTION! The UV sterilizer will not
filter mechanical impurities, it only disposes of biological impurities!
